DMN is launching the M-TDV Multiport Tube Diverter Valve at Anuga FoodTec India 2026!

Designed for pneumatic conveying systems handling powders and pellets, the M-TDV enables product flow to be diverted from one line to multiple destinations or converged from multiple lines into a single line.

With 4 to 14 ports, the M-TDV offers a compact alternative to systems built with multiple two-way diverters in series.

WHY CHOOSE THE M-TDV?

• Up to 14 routes through one compact valve
• One valve for multiport diverging or converging product flows
• Only two smooth bends in the product path
• Fewer diverters, control outputs, connections and overall system complexity

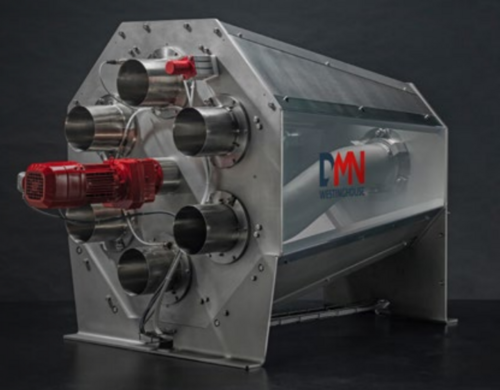

M-TDV MULTIPORT TUBE DIVERTER VALVE

The M-TDV is a multiport tube diverter valve for pneumatic conveying systems handling powders and pellets. It enables product flow to be diverted from one line to multiple destinations or converged from multiple lines into a single line. Its smooth product path with only two bends helps minimise pressure loss, product degradation, and equipment wear, while supporting reliable switching performance.

Available in configurations with 4 up to 14 ports, the M-TDV offers a compact alternative to systems built with multiple two-way diverters in series.

SPECIFICATIONS

• One valve for diverging from 1 line to up to 14 destinations, or converging from up to 14 lines into 1
• Replaces a complex multi-diverter arrangement with one compact unit
• Helps reduce control outputs, connections, and overall system complexity
• Exact alignment between ports and internal swan neck
• Smooth product path with only two smooth bends
• Helps minimise product degradation, pressure loss, and equipment wear
• Temperature range: -20°C to +100°C
• Pressure range: -0.8 to 3 barg
• Hygienic design, with USDA-accepted versions available
• EC1935/2004-compliant product contact materials and FDA-approved white EPDM inflatable seals
• ATEX 2014/34/EU certification available
